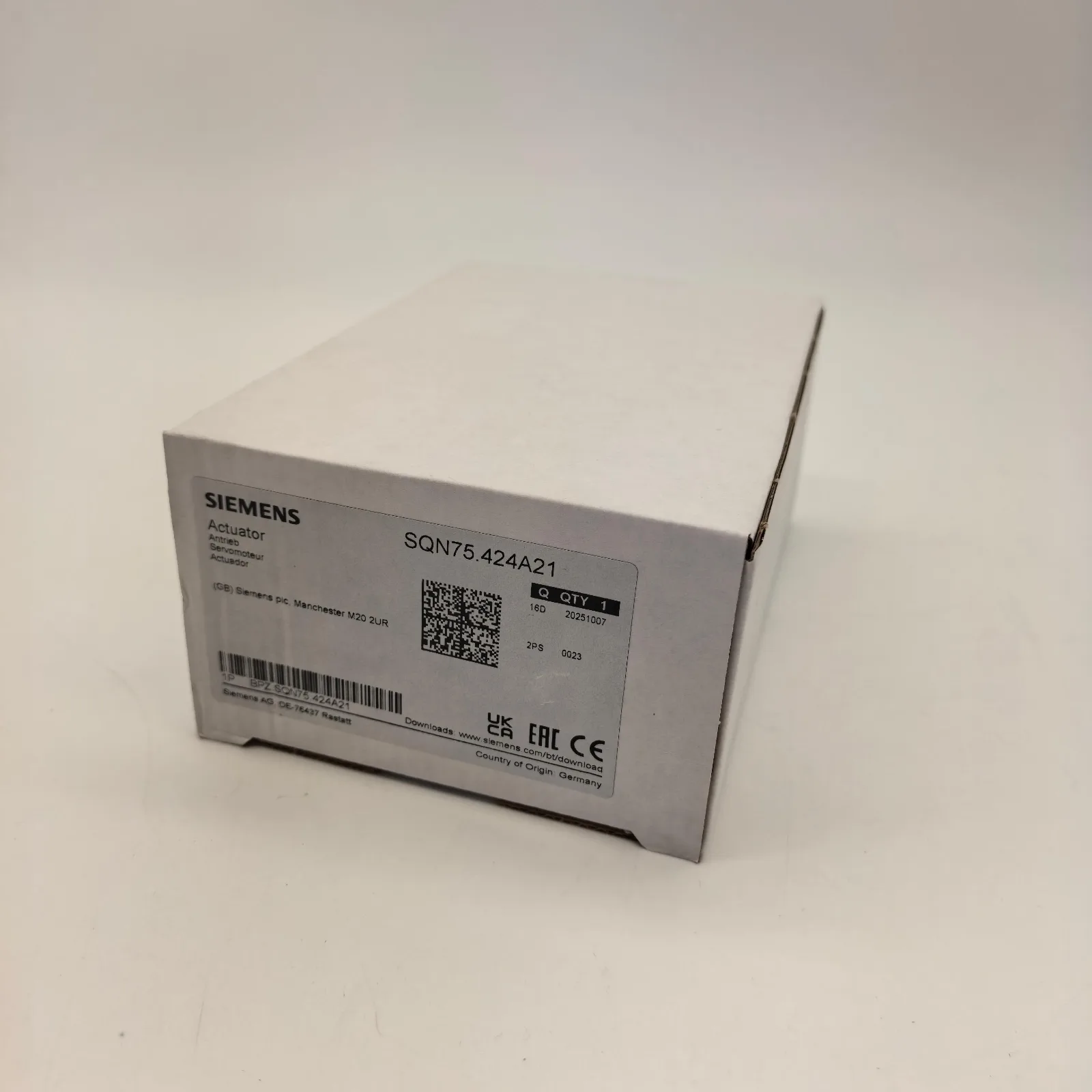

SQN75 high-torque damper actuator
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Damper Actuator / Air Damper Motor |
| Series | SQN75 |
| Application | Medium and Large Industrial Burner Systems |
| Control Type | Modulating or 3-Position (depending on sub-model) |
| Operating Voltage | 220–240 VAC (110V versions available depending on configuration) |
| Frequency | 50/60 Hz |
| Rotation Angle | Typically 90° (adjustable depending on configuration) |
| Torque Range | Approx. 15–30 Nm (varies by specific version) |
| Running Time | Approx. 4–30 seconds (depending on model) |
| Mounting | Direct shaft mounting |
| Fuel Type | Gas and Oil Burners |
| Housing | Industrial-duty metal housing |
| Duty Cycle | Continuous industrial operation |
| Condition | New / OEM |
Notes
Product Overview
The Siemens SQN75 is a high-torque damper actuator designed for medium to large industrial burner systems.
As part of the SQN70 series, it provides reliable air damper positioning control to ensure precise air-fuel ratio regulation in combustion processes.
The SQN75 is commonly used in industrial boilers, furnaces, kilns, and process heating systems where stable and accurate combustion control is required.
Its increased torque output makes it suitable for larger air dampers and more demanding industrial environments.
This actuator integrates seamlessly with burner management systems and supports staged or fully modulating burner operation depending on system configuration.
Key Features
- High torque output for larger dampers
- Accurate and stable air positioning control
- Suitable for gas-fired and oil-fired burner systems
- Available in modulating and multi-position configurations
- Adjustable rotation angle depending on model
- Durable industrial-grade construction
- Designed for continuous operation
- Long service life with reliable performance
Packaging & Delivery
- Individual protective industrial carton packaging
- Shock-resistant internal packaging materials
- Standard export packaging for international shipment
- Fast dispatch for stocked models
- Shipping via courier, air freight, or sea freight
- Bulk supply available for OEM and distributor customers
Frequently Asked Questions (FAQ)
Q: What is the Siemens SQN75 used for?
A: It is a high-torque damper actuator used to control combustion air flow in medium to large industrial burner systems.
Q: How does SQN75 differ from SQN70 or SQN71?
A: SQN75 generally provides higher torque output and may have different control configurations depending on the specific sub-model.
Q: Is SQN75 suitable for modulating burners?
A: Yes. Many versions support modulating burner control applications.
Q: Can SQN75 be used in industrial boilers?
A: Yes. It is widely installed in boilers, furnaces, kilns, and process heating equipment.
Q: What fuel types is it compatible with?
A: It is suitable for natural gas and oil-fired industrial burner systems.
Q: Do you provide worldwide shipping?
A: Yes. International shipping is available.
