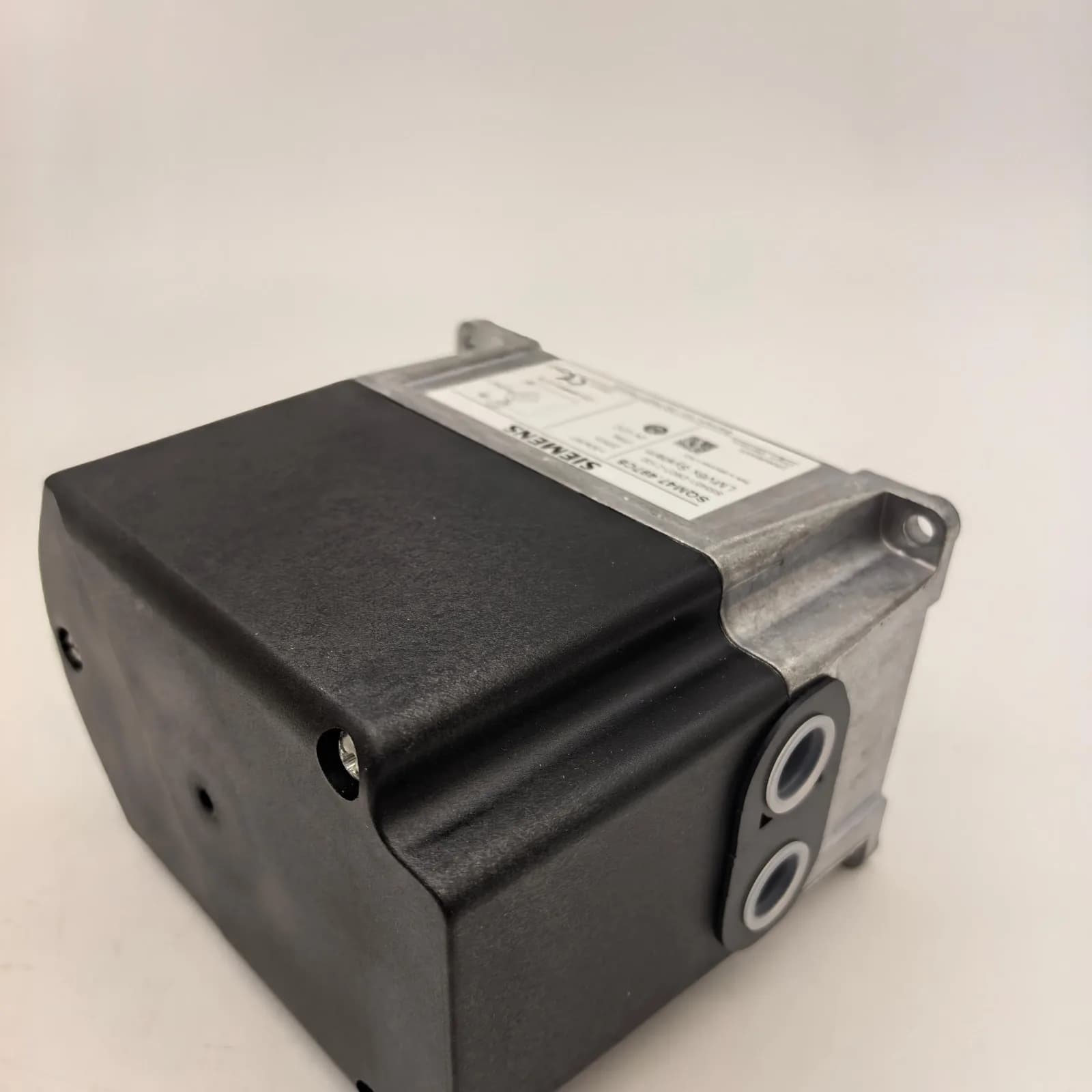

SQM47 servo motor
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Servo Motor / Actuator |
| Model | SQM47 |
| Series | SQM4 Series |
| Application | Industrial Burner Air & Fuel Ratio Control |
| Control Type | Modulating Control |
| Operating Voltage | 220–240 VAC (depending on version) |
| Frequency | 50/60 Hz |
| Rotation Angle | Adjustable, typically up to 90° |
| Torque Range | High torque class (varies by sub-model) |
| Position Feedback | Mechanical position indicator |
| Mounting Type | Direct mounting on burner linkage assembly |
| Protection Class | Industrial-grade protection |
| Operating Environment | Industrial boilers, furnaces, kilns, process heating systems |
| Duty Cycle | Continuous industrial operation |
| Condition | New / OEM |
Notes
Product Overview
The SQM47 servo motor is engineered for high-torque modulating control in industrial burner systems.
As part of the SQM4 series, it is designed to precisely regulate air dampers and fuel control mechanisms in demanding combustion applications.
The SQM47 is typically installed in medium to large industrial boilers, furnaces, kilns, and thermal process systems where accurate air-fuel ratio control is essential for safe and efficient operation.
Its robust mechanical design and stable positioning performance make it suitable for continuous industrial duty in challenging operating environments.
Key Features
- High-torque industrial servo actuator
- Designed for precise modulation of air and fuel systems
- Suitable for medium and large combustion equipment
- Adjustable rotation angle for flexible installation
- Stable and repeatable positioning accuracy
- Heavy-duty industrial construction
- Compatible with burner management systems
- Long operational service life
Packaging & Delivery
- Individual industrial protective carton packaging
- Anti-vibration internal packing
- Standard export packaging for international shipment
- Fast dispatch for stocked models
- Shipping via courier, air freight, or sea freight
- Bulk supply available for OEM and distributor customers
Frequently Asked Questions (FAQ)
Q: What is the SQM47 servo motor used for?
A: It is used for high-torque modulating control of air dampers and fuel valves in industrial burner systems.
Q: Is SQM47 suitable for large industrial boilers?
A: Yes. It is commonly applied in medium and large industrial combustion systems.
Q: What is the difference between SQM46 and SQM47?
A: Both belong to the SQM4 series but may differ in torque rating, internal gearing configuration, and specific burner system compatibility.
Q: Can SQM47 be used for gas and oil burners?
A: Yes. It is suitable for both gas-fired and oil-fired industrial burner systems.
Q: Is international shipping supported?
A: Yes. Worldwide shipping is available.
