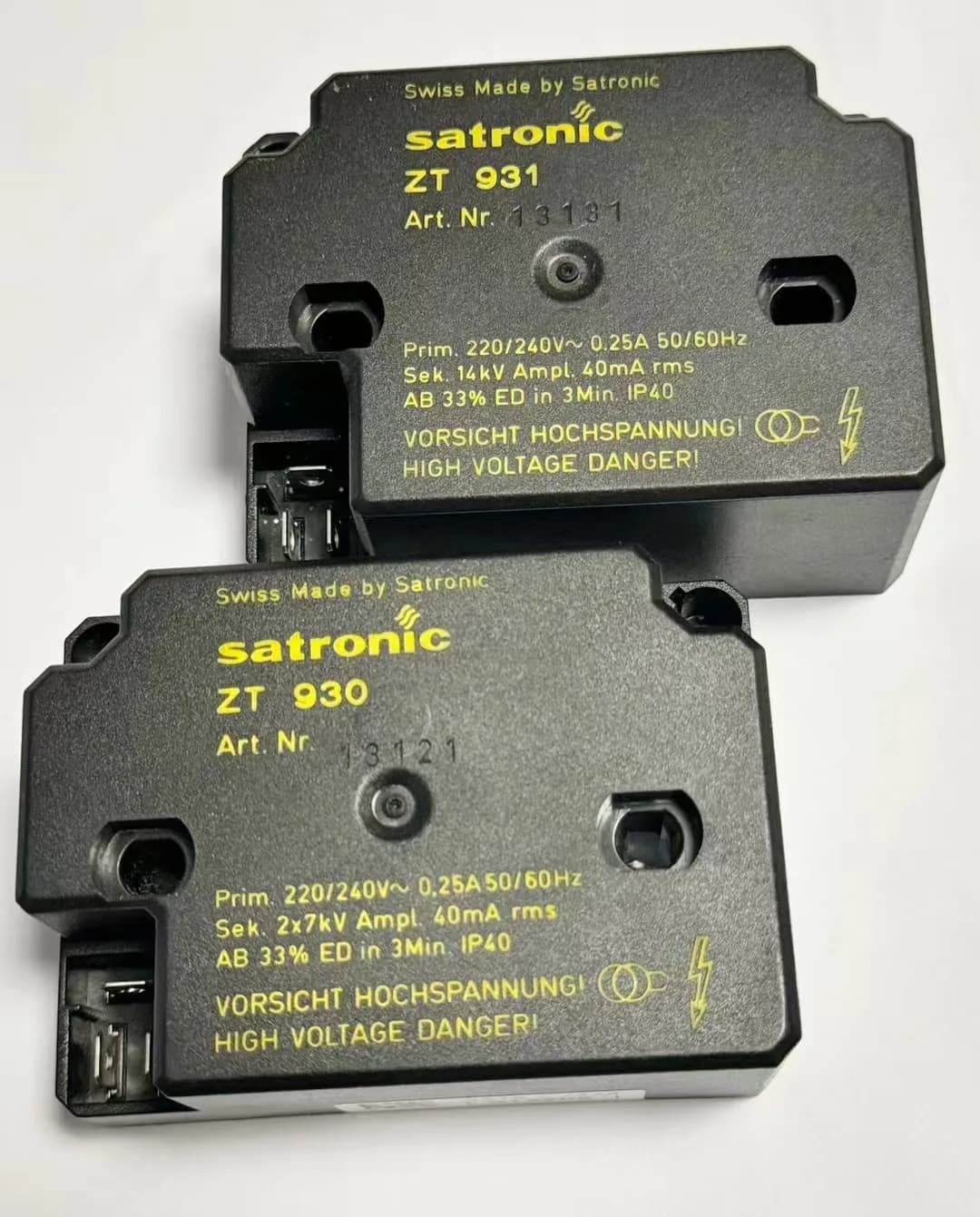

ZT931 Ignition Transformer
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Frequency Ignition Transformer |
| Application | Gas Burner Ignition Systems |
| Supply Voltage | 220–240 VAC |
| Frequency | 50 / 60 Hz |
| Primary Current | Approx. 0.25 A |
| Ignition Voltage | 1 × 14 kV |
| Secondary Current | Approx. 40 mA |
| Secondary Frequency | Approx. 20 kHz |
| Spark Gap | 3 – 5 mm |
| Duty Cycle | 33% ED within 3 minutes |
| Protection Class | IP40 |
| Operating Temperature | -10°C to +60°C |
| Mounting | Typically installed beneath burner control unit |
| Weight | Approx. 0.28 kg |
Notes
Product Overview
The ZT931 is a high-frequency ignition transformer designed for gas burner ignition systems in industrial and commercial combustion equipment. It generates a high-voltage spark required for reliable ignition during the burner start-up sequence.
This ignition transformer uses high-frequency technology to produce a stable ignition voltage of approximately 14 kV, enabling reliable ignition even under demanding combustion conditions. Its compact design allows it to be easily installed in burner control assemblies and integrated into various gas burner configurations.
The ZT931 is commonly used in industrial boilers, furnaces, and process heating systems where consistent burner ignition performance and operational safety are essential.
Key Features
- High-frequency ignition output for reliable burner start-up
- Ignition voltage up to approximately 14 kV
- Suitable for industrial gas burner ignition systems
- Compact and lightweight design for easy installation
- Low power consumption with stable performance
- Compatible with standard burner ignition cables
- Designed for continuous industrial use
Packaging & Delivery
- Individual protective industrial carton packaging
- Internal shock-resistant packing materials
- Standard export packaging suitable for international shipment
- Fast dispatch available for stocked items
- Shipping via courier, air freight, or sea freight
- Bulk supply available for distributors and OEM customers
Frequently Asked Questions (FAQ)
Q: What is the ZT931 used for?
A: It is an ignition transformer used to generate high-voltage sparks for gas burner ignition systems.
Q: What ignition voltage does the ZT931 produce?
A: It produces an ignition voltage of approximately 14 kV to ensure reliable burner ignition.
Q: Is the ZT931 suitable for industrial burners?
A: Yes, it is widely used in industrial gas burners, boilers, and combustion systems.
Q: What type of burners can use this ignition transformer?
A: It is typically used with gas-fired burners installed in boilers, furnaces, and heating equipment.
Q: What is the operating temperature range?
A: The typical ambient operating temperature range is approximately -10°C to +60°C.
Q: Do you provide worldwide shipping?
A: Yes, international shipping is available.
