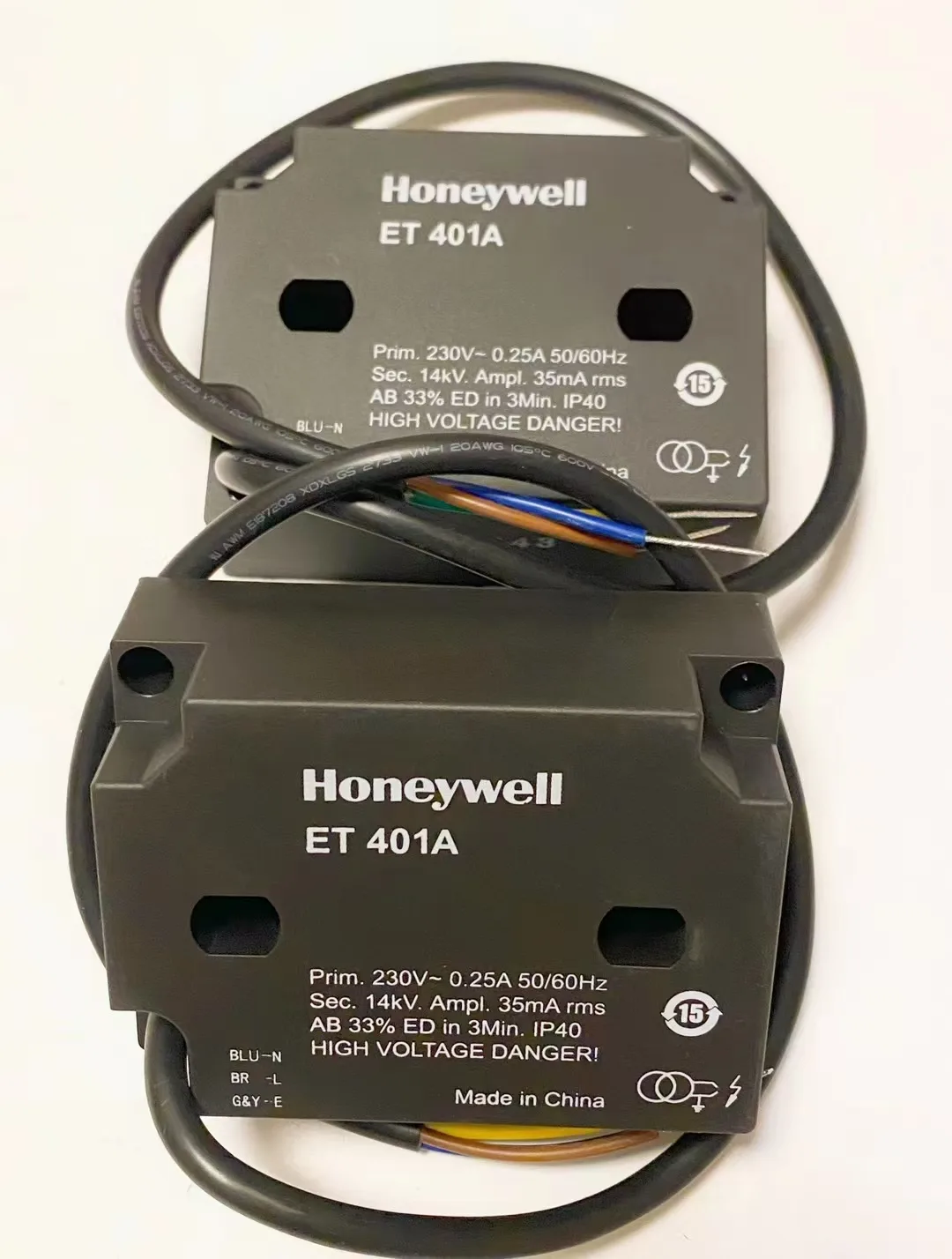

ET401A High Voltage Ignition Transformer for Burner Ignition Systems
High Voltage Ignition Transformer for Burner Ignition Systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Voltage Ignition Transformer |
| Voltage Input | Standard line voltage (varies by model) |
| Output Peak Voltage | Approximately 14 kilovolts high voltage spark output |
| Frequency | 50/60 Hertz |
| Spark Gap Support | Electrode spacing between 3 and 5 millimeters |
| Mounting | Designed for installation in burner control boxes |
| Application | Gas burner and combustion ignition systems |
| Insulation Rating | Meets industry safety standards |
| Weight | Approximately 1.2 pounds |
| Ambient Operating Range | About 5 to 140 degrees Fahrenheit or -15 to 60 degrees Celsius |
| Approvals | UL recognized component |
Notes
Product Overview
The ET401A high voltage ignition transformer is an industrial ignition component designed for use in burner and combustion control systems.
It is engineered to generate a high voltage output that reliably creates sparks across defined electrode gaps, enabling ignition of pilot flames or direct spark ignition in gas burners and related heating equipment. Information from Honeywell technical overview shows this series uses a transistorized oscillator to produce high frequency voltage that is stepped up to high voltage for ignition use.
This type of transformer is typically mounted inside burner control cabinets and provides consistent spark generation, low power consumption, and compliance with relevant safety standards.
Key Features
- Generates high voltage output suitable for ignition of gas burners and combustion systems
- Supports electrode spacing typically between 3 and 5 millimeters
- Designed for mounting within burner control assemblies
- Modest power consumption with low inrush current
- Low electromagnetic interference compared with conventional ignition devices
- Meets recognized safety standards for electrical insulation and performance
- Reliable ignition performance for industrial applications
Packaging & Delivery
- Protected industrial grade packaging for safe shipping
- Standard export box packing for global transport
- Fast dispatch for stocked items
- Shipment by air, sea, or courier available
- Bulk shipment options for distributors and large orders
Frequently Asked Questions (FAQ)
Q: What type of product is the ET401A?
A: It is a high voltage ignition transformer designed for burner ignition systems.
Q: What voltage does the ET401A output?
A: It produces a high voltage spark output of approximately 14 kilovolts for ignition use.
Q: Where is this transformer installed?
A: It is typically mounted inside burner control boxes or panels.
Q: Is it suitable for gas burners?
A: Yes. It is widely used for gas burner ignition applications.
Q: Does this product meet safety standards?
A: Yes. It is a component recognized for compliance with safety standards.
