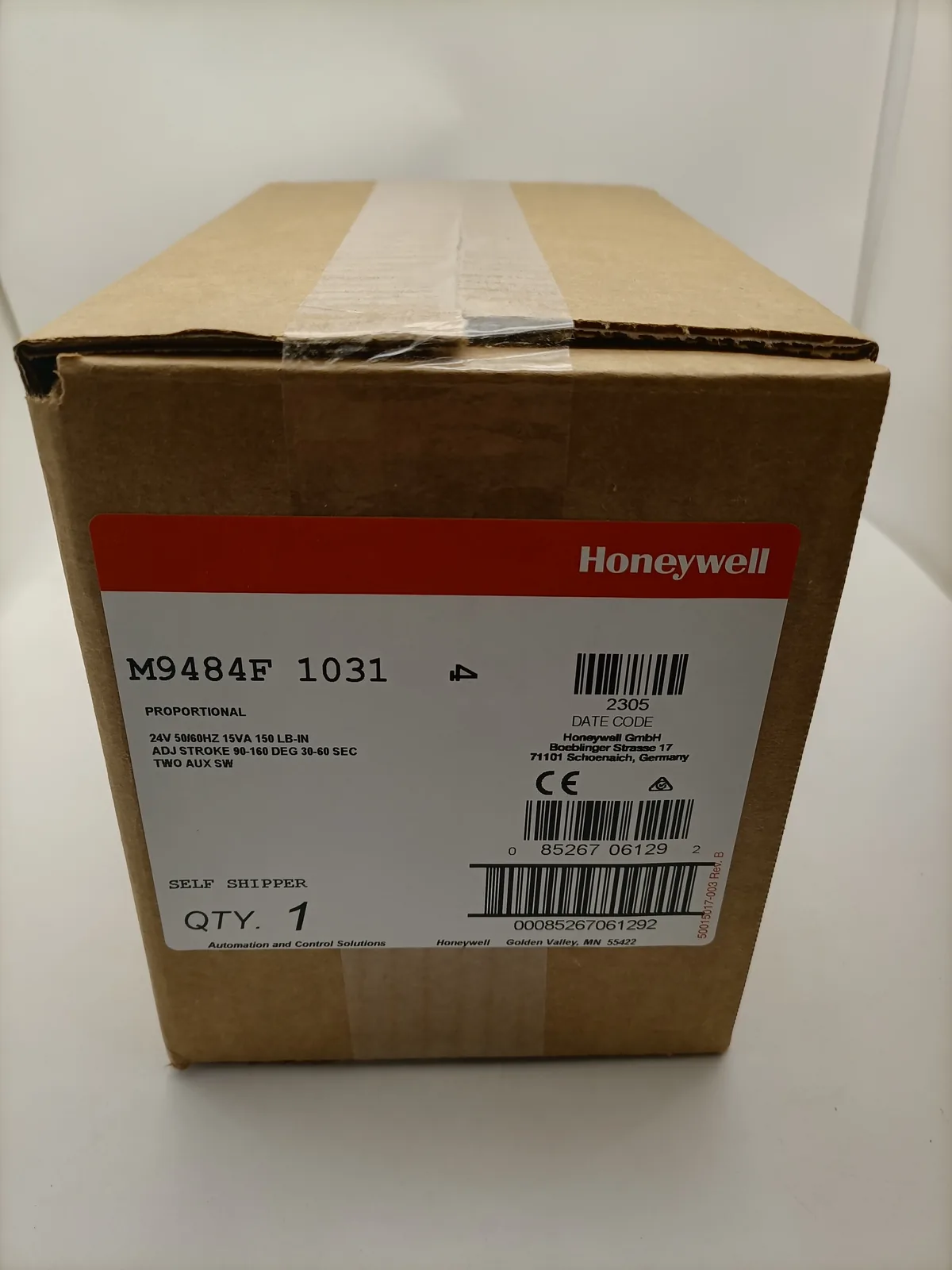

M9484F1031/U Industrial Servo Motor with Enhanced Torque
Industrial Servo Motor with Enhanced Torque
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Modutrol IV Proportional Motor Actuator |
| Voltage | 24 VAC |
| Control Signal | 135 ohm proportional input |
| Stroke | Adjustable 90 to 160 degrees |
| Stroke Running Time | 30 to 60 seconds |
| Torque | 150 lb-in |
| Auxiliary Switches | 2 auxiliary switches |
| Power Loss Action | Non-spring return |
| NEMA Rating | NEMA 3 |
| Ambient Temperature Range | -40 to 150 degrees Fahrenheit |
| Shaft Type | Double-ended square shaft |
Notes
Product Overview
The M9484F1031/U is an industrial-grade servo motor actuator designed for demanding valve and damper control applications. As part of the Honeywell Modutrol IV series, it is commonly used in burner management systems, combustion control, and industrial automation where reliable torque and precise positioning are required.
This model is suited for applications requiring enhanced mechanical stability and consistent torque output under continuous operating conditions.
Key Features
- Industrial Modutrol IV proportional servo actuator
- Designed for demanding valve and damper control
- 24 VAC operation with proportional control input
- Adjustable stroke and timing for system flexibility
- Dual auxiliary switches for feedback and control logic
- Non-spring return configuration
- NEMA 3 rated enclosure
- Durable construction for industrial environments
Packaging & Delivery
- Industrial protective carton packaging
- Export packing for global shipment
- Fast processing for available inventory
- Shipping via courier, air freight, or sea freight
- Bulk and project supply supported
Frequently Asked Questions (FAQ)
Q: What makes this model suitable for industrial use?
A: Its robust construction, stable torque output, and Modutrol IV design make it suitable for continuous industrial operation.
Q: Does it include position feedback?
A: Yes, it includes two auxiliary switches for feedback or interlock functions.
Q: Can it be used in burner systems?
A: Yes, it is commonly used in burner firing rate and combustion control systems.
Q: Is this a spring return actuator?
A: No, it is a non-spring return proportional actuator.
Q: What control signal is required?
A: A proportional input signal compatible with Modutrol IV controllers.
