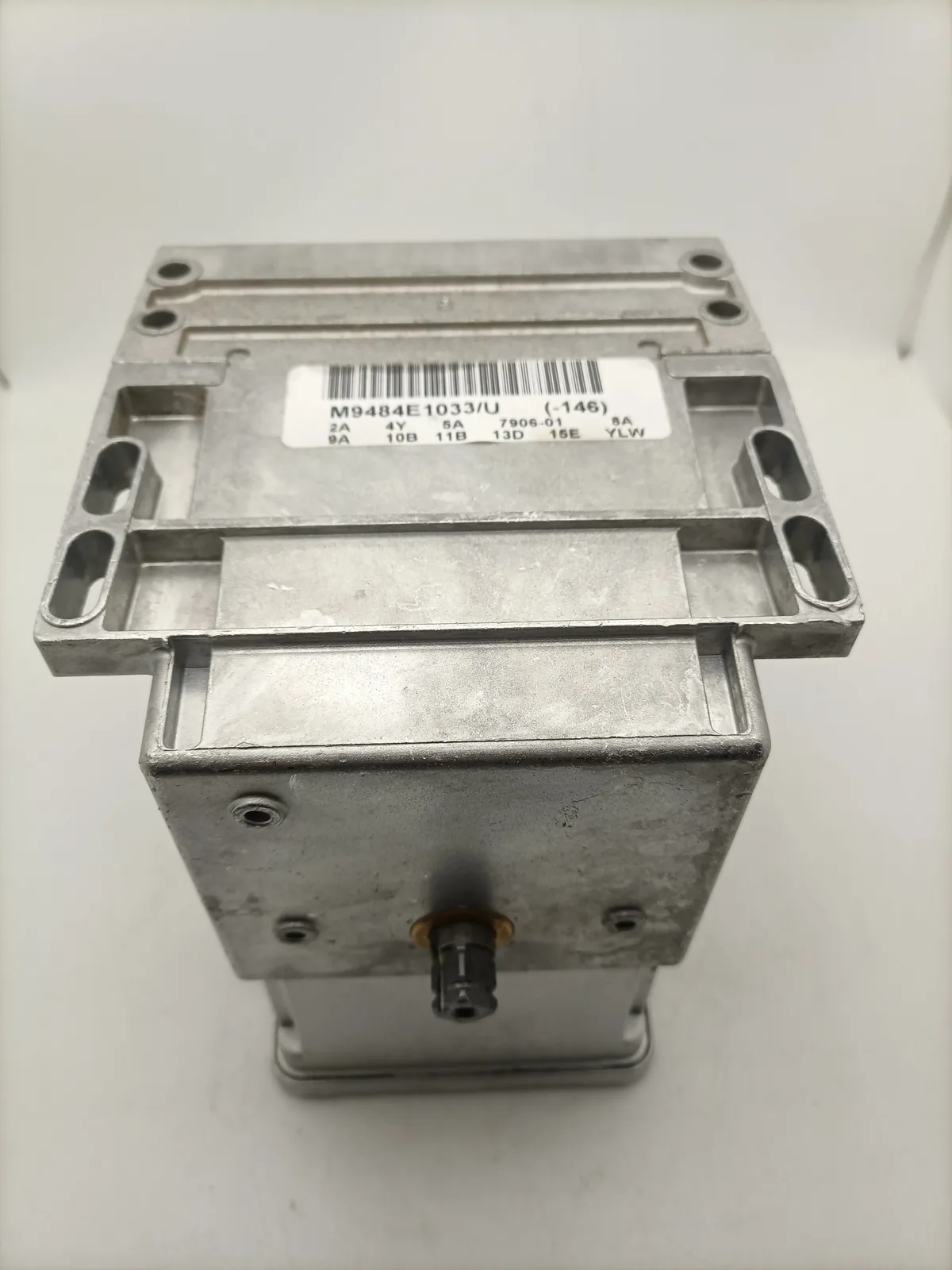

M9484E1033/U High‑Precision Servo Motor for Automation Control
High‑Precision Servo Motor for Automation Control
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Modutrol IV Proportional Motor Actuator |
| Voltage | 24 VAC |
| Control Signal | 135 ohm proportional input |
| Stroke | Field‑adjustable 90 to 160 degrees |
| Stroke Running Time | 30 to 60 seconds |
| Torque | 150 lb‑in |
| Auxiliary Switch | 1 auxiliary switch |
| Power Loss Action | Non‑spring return |
| NEMA Rating | NEMA 3 |
| Ambient Temperature Range | -40 to 150 degrees Fahrenheit |
| Shaft Type | Double‑ended square shaft |
| Weight | Approx 7.2 lbs |
Notes
Product Overview
The M9484E1033/U is a high‑precision proportional motor actuator designed for industrial automation and control applications. It belongs to the Honeywell Modutrol IV motor family used to drive burner firing rate valves, dampers, and auxiliary equipment in gas or oil burner control systems and general industrial proportional control systems.
This actuator operates on 24 VAC with a proportional input control signal, offering precise control of shaft position with adjustable stroke range and timing. Its robust design makes it suitable for automation applications requiring reliable modulating performance and consistent torque delivery.
Key Features
- Proportional Modutrol IV motor for precise control actuation
- Operates on 24 VAC with proportional input control
- Adjustable stroke from 90 to 160 degrees
- Stroke timing from 30 to 60 seconds
- 150 lb‑in torque for dependable valve and damper control
- Includes one auxiliary switch for position indication
- Non‑spring return configuration for modulating control
- NEMA 3 rated housing for basic protection
- Double‑ended square shaft for flexible mounting
- Designed for automation and industrial burner control
